芯達茂XD075C065CX1S3國產IGBT+SBD , 80A 650V TO-247-3L
80A 650V TO-247-3L
24小時全國服務熱線：18902855590
24小時全國服務熱線：18902855590
XD075C065CX1S3 芯達茂

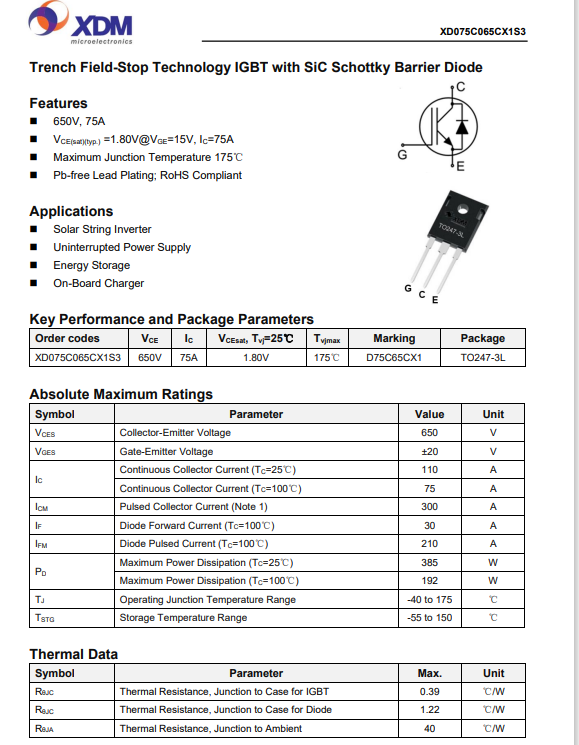

Trench Field-Stop Technology IGBT with SiC Schottky Barrier Diode Features
? 650V, 75A
? VCE(sat)(typ.) =1.80V@VGE=15V, IC=75A
? Maximum Junction Temperature 175℃
? Pb-free Lead Plating; RoHS Compliant Applications
? Solar String Inverter
? Uninterrupted Power Supply
? Energy Storage
? On-Board Charger
